Home Battery OEM 5kwh 10kwh 48v 51.2V Lifepo4 Lithium Battery 100ah 200ah PowerWall Battery for Household Energy Storage

Inquiry

Overview
Inquiry
Related Products

* Local logistics warehouse center in Germany

* Localized technical support in Germany
* Local after-sales service center in Germany

product home battery oem 5kwh 10kwh 48v 512v lifepo4 lithium battery 100ah 200ah powerwall battery for household energy storage-0

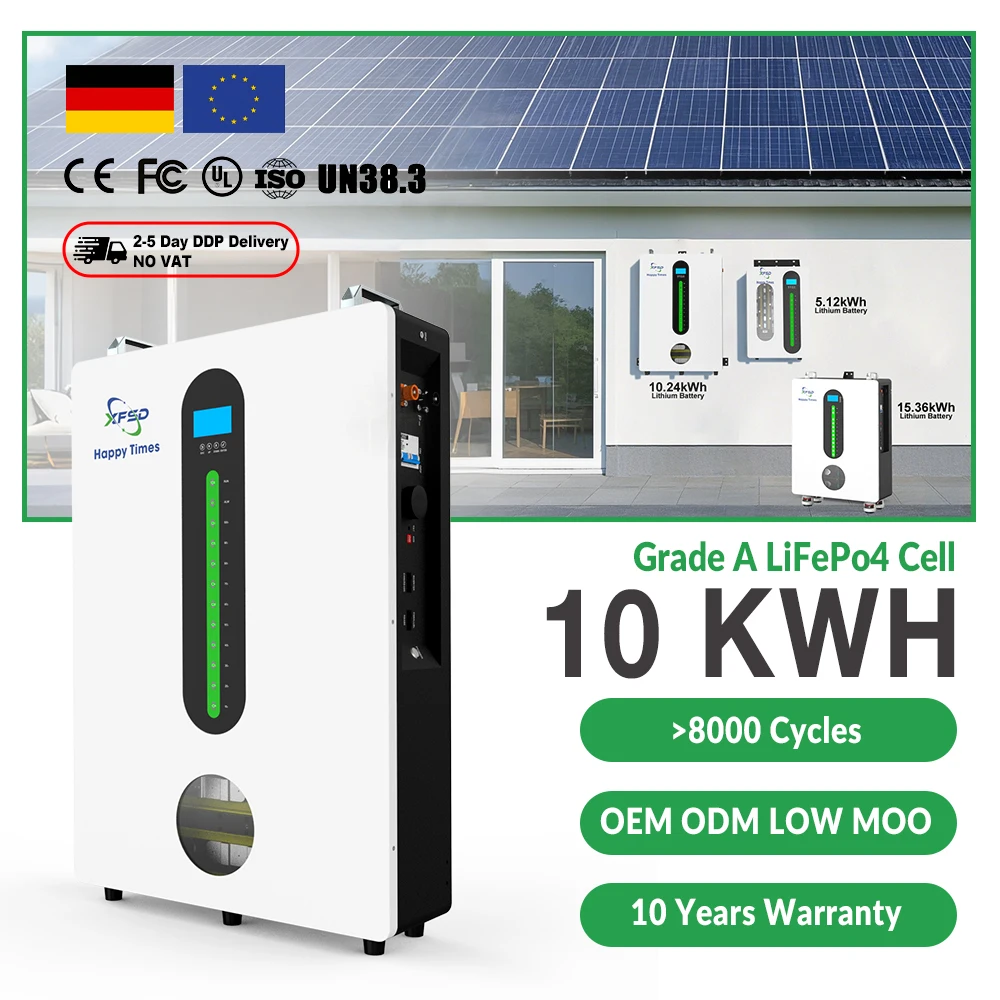

XFSD 5KWH/10KWH 48/51.2v 100/200AH wall-mounted batteries home Energy Storage Battery System

Smart BMS

Integrated smart BMS with self-balance for each serial of cells
Safe and Green
The safest LifePo4 Battery,no fire and no explosions
Ultra-Thin
Compact Size,100mm thin, and 5kwh light to 40kg weight, 10kwh to 100kg
6000 Cycles
Super Long 15-20 years working life span
Plug In and Play
Plug in batteries then working ,easiest installation
Certifications
CE,Rohs,MSDS,UN38.3,IEC ISO 9001

product home battery oem 5kwh 10kwh 48v 512v lifepo4 lithium battery 100ah 200ah powerwall battery for household energy storage-1

Product Paramenters

Electrical Characteristics
Mode	HTE-W51100	HTE-W51200	HTE-M51300
Nominal Voltage	51.2V(16series)	51.2V(16series)	51.2V(16series)
Capacity	100Ah	200Ah	280AH/304AH/314AH
Energy	5.12KWh	10.24KWh	15KWH/16KWH
Internal Resistance	≤40mΩ	≤40mΩ	≤40mΩ
Voltage Range(Vdc)	44.8V~58.4V	44.8V~58.4V	44.8V~58.4V
Design Life	≥15 years	≥15 years	≥15 years
Charge Cut-off Voltage	58.4V	58.4V	58.4V
Max.ContinuousWork Current	100A	200A	200ah
Communication	CAN/RS485/RS232/Bluetooth /WlFl
Charge Temperature	0℃~45℃
Discharge Temperature	-20℃~60℃
Dimensions	640440175mm	850440175mm
Weight	≈51KG	≈100KG
Cycle Life	＞6000cycles	＞6000cycles	＞8000cycles
Certification	CE+RoHS+UN38.3+MSDS
Pros	Applied in off-grid and hybrid system, Compact Design, Modular Expansion
OEM/ODM	Sticker/ Logo/ package / connector
Application	Solar Energy, Wind Energy,Household Energy, Marine,Trolling Motor, Replace lead-acid batteries, Backup battery, Power battery...

Products characteristics

product home battery oem 5kwh 10kwh 48v 512v lifepo4 lithium battery 100ah 200ah powerwall battery for household energy storage-2

Compact Size

● Ultra-thin wall-mounted home battery design, beautiful atmosphere, perfectly integrated into the home environment
● Built-in stable BMS with overcharge, overdischarge, overcurrent, high and low temperature protection functions

Long service life and high reliability

●15+ years long life design@25°C ;

●Adopt approved grade A cells to ensure high safety and premium performance of the battery;

●High operational reliability.

product home battery oem 5kwh 10kwh 48v 512v lifepo4 lithium battery 100ah 200ah powerwall battery for household energy storage-3

product home battery oem 5kwh 10kwh 48v 512v lifepo4 lithium battery 100ah 200ah powerwall battery for household energy storage-4

Modular design

●Parallel connection available for flexible

●Uniquely designed view window, beautiful and generous.
●system capacity extension

LED strip shows battery capacity and battery status in real time

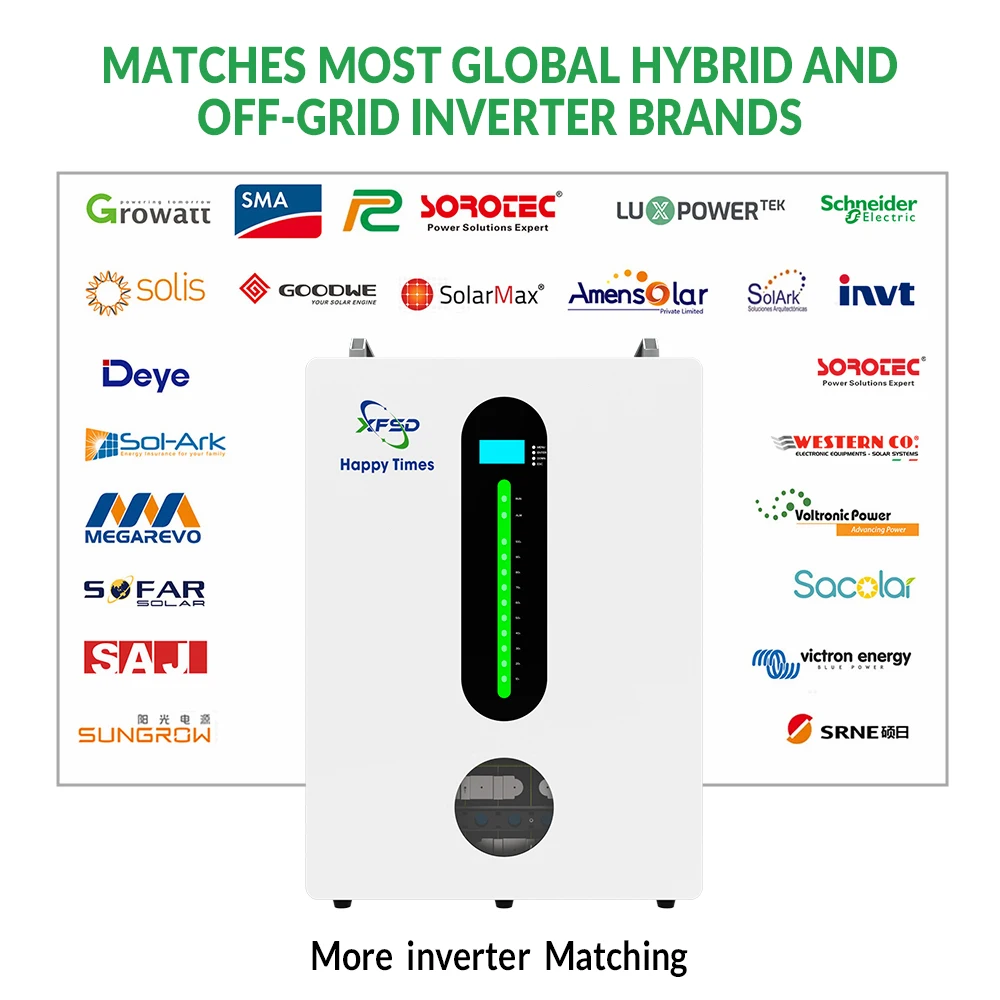

Wide compatibility

●Fully compatible with most inverters on the global market,
●such as SMA, SolarEdge, Sungrow， Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.
