15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System

15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System

Inquiry
  • Overview
  • Inquiry
  • Related Products
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
15kwh 10kwh 5kwh Lifepo4 Lithium Battery Low-Voltage Removable Battery Eu Stock Hybrid Off-Grid Solar Energy Storage System
* Local logistics warehouse center in Germany
* Localized technical support in Germany
* Local after-sales service center in Germany
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-0
XFSD 5KWH/10KWH 48/51.2v 100/200AH wall-mounted batteries home Energy Storage Battery System
Smart BMS
Integrated smart BMS with self-balance for each serial of cells
Safe and Green
The safest LifePo4 Battery,no fire and no explosions
Ultra-Thin
Compact Size,100mm thin, and 5kwh light to 40kg weight, 10kwh to 100kg
6000 Cycles
Super Long 15-20 years working life span
Plug In and Play
Plug in batteries then working ,easiest installation
Certifications
CE,Rohs,MSDS,UN38.3,IEC ISO 9001
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-1
Product Paramenters
Electrical Characteristics
Mode
HTE-W51100
HTE-W51200
HTE-M51300
Nominal Voltage
51.2V(16series)
51.2V(16series)
51.2V(16series)
Capacity
100Ah
200Ah
280AH/304AH/314AH
Energy
5.12KWh
10.24KWh
15KWH/16KWH
Internal Resistance
≤40mΩ
≤40mΩ
≤40mΩ
Voltage Range(Vdc)
44.8V~58.4V
44.8V~58.4V
44.8V~58.4V
Design Life
≥15 years
≥15 years
≥15 years
Charge Cut-off Voltage
58.4V
58.4V
58.4V
Max.ContinuousWork Current
100A
200A
200ah
Communication
CAN/RS485/RS232/Bluetooth /WlFl
 Charge Temperature
0℃~45℃
 Discharge Temperature
-20℃~60℃
Dimensions
640*440*175mm
850*440*175mm
Weight
≈51KG
≈100KG
Cycle Life
＞6000cycles
＞6000cycles
＞8000cycles
Certification
CE+RoHS+UN38.3+MSDS
Pros
Applied in off-grid and hybrid system, Compact Design, Modular Expansion
OEM/ODM
Sticker/ Logo/ package / connector
Application
Solar Energy, Wind Energy,Household Energy, Marine,Trolling Motor, Replace lead-acid batteries, Backup battery, Power battery...
Products characteristics
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-2

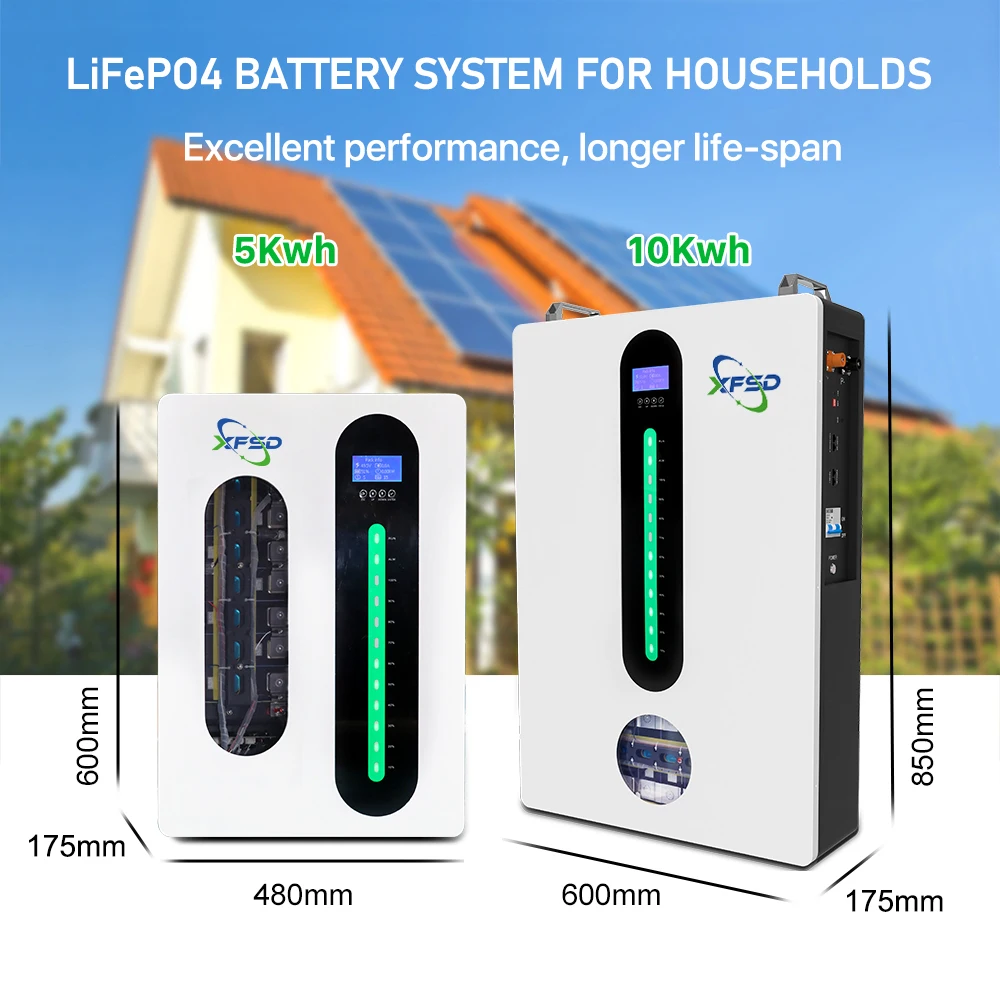

Compact Size
● Ultra-thin wall-mounted home battery design, beautiful atmosphere, perfectly integrated into the home environment
● Built-in stable BMS with overcharge, overdischarge, overcurrent, high and low temperature protection functions
Long service life and high reliability
●15+ years long life design@25°C ;

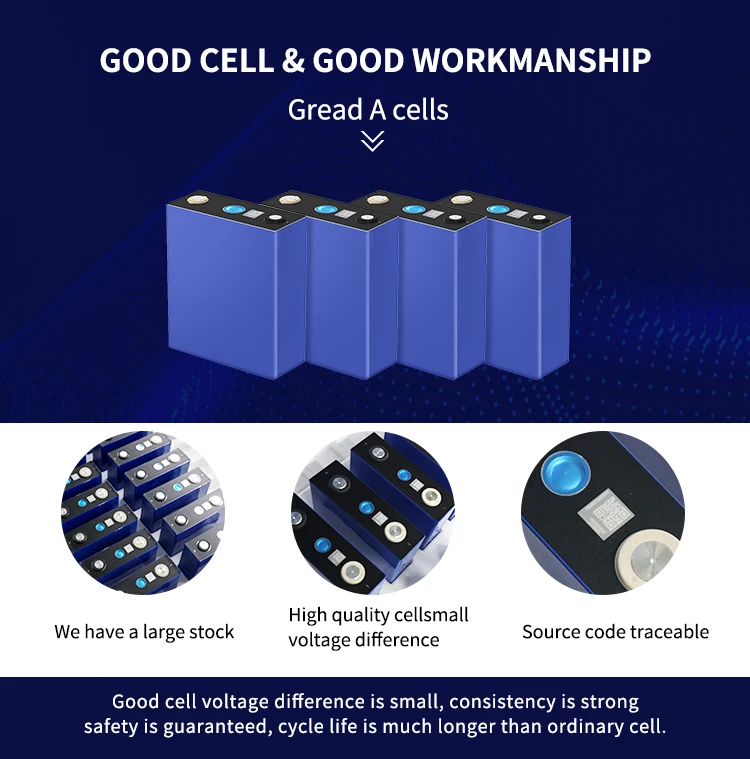

●Adopt approved grade A cells to ensure high safety and premium performance of the battery;
●High operational reliability.
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-3
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-4
Modular design
●Parallel connection available for flexible
●Uniquely designed view window, beautiful and generous.
●system capacity extension
LED strip shows battery capacity and battery status in real time
Wide compatibility
●Fully compatible with most inverters on the global market,
●such as SMA, SolarEdge, Sungrow， Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.'
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-5
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-6
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-7
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-8
product 15kwh 10kwh 5kwh lifepo4 lithium battery low voltage removable battery eu stock hybrid off grid solar energy storage system-9
Certifications
HAPPY TIMES(XFSD) can provide a complete set of testing reports from the National Quality Supervision and Inspection Center for the renewable energy industry: UN38.3, MSDS, UL ISO9001, SGS, ISO1400,ROHS…… hazardous packaging certificate... Please rest assured to purchase!
